Battery / Inverter

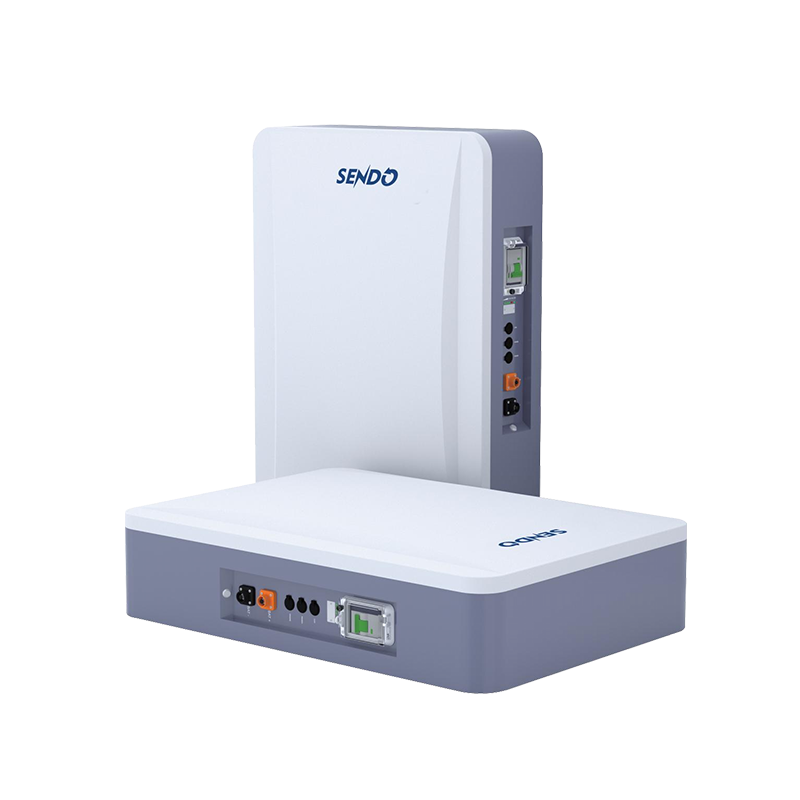

LFP 5-10KWH/LV Wall Mounted Battery

The LFP 5-10KWh/LV Wall Mounted Battery is a high-performance energy storage solution designed for residential and light commercial applications. It uses reliable LFP (LiFePO4) cells with over 6000 cycles and a lifespan of more than 15 years, ensuring long-term stability. The battery supports CANbus standard connection, is compatible with various inverters, and can be scaled up to 160kWh through parallel connections to meet diverse energy needs. Its IP65 rating and natural cooling system enable reliable operation in different environments.

Equipped with a smart BMS system, the battery optimizes charging/discharging efficiency and provides real-time monitoring. Combined with triple hardware protection, it ensures safety and durability. Whether for solar energy storage, backup power, or off-grid systems, this battery offers an efficient, flexible, and long-lasting energy management solution.

PREV：LFP 3000 /HV Stack Mounted Battery | NEXT：No next article

+ Contact us + Catalogue Download

Product Description

Model	LFP 5kWh/LV	LFP 10kWh/LV
Available Energy	4.6kWh	9.2kWh
Nominal Discharge/Charging power	2.5kW	5kW
Peak Power (Discharge Only)	2.9kWh for 3 seconds	5.8kWh for 3 seconds
Constant Current(Discharge Only)	50A	100A
Voltage Range	48-56Vd.c
Nominal Voltage	51.2Vd.c
Max.Charge Voltage	59.2V±0.5Vd.c
Weight	65kg	116.5kg

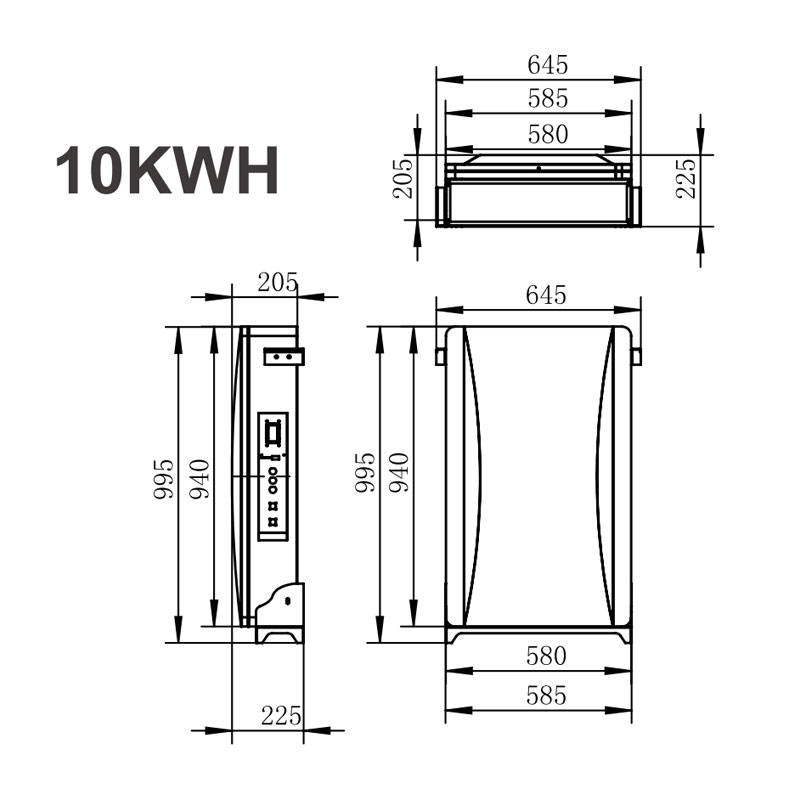

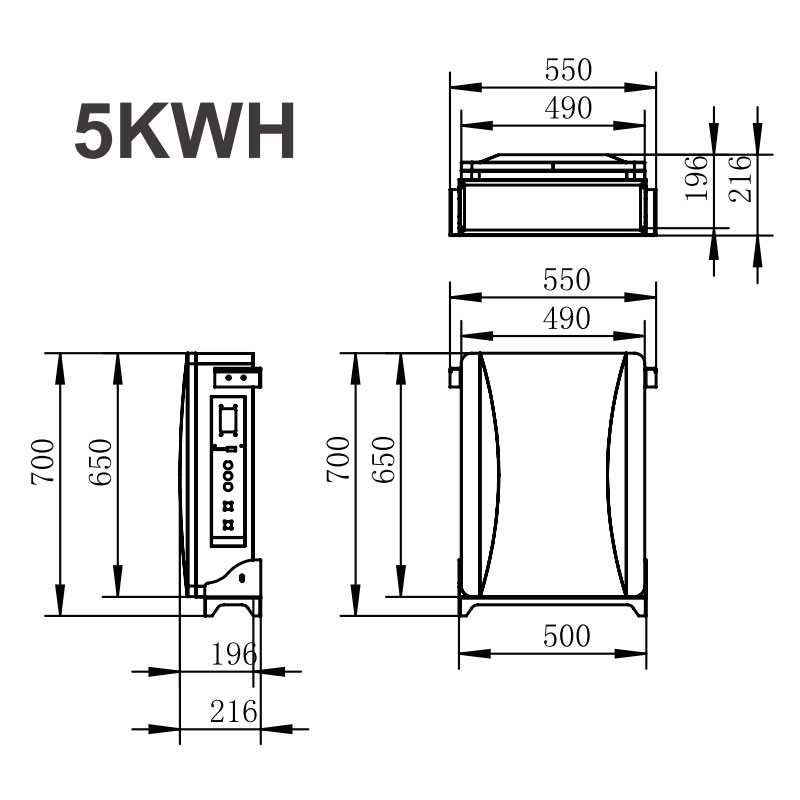

Dimension(mm)	490(550)650(700)196(216)mm	585(645)940(995)205(225)mm
Certificates	CE、UN38.3、IEC62619、IEC63056

Max. recommended DOD	90%
Operating Condition	indoor or outdoor
Operating	Charge 0~45℃
Temperature	Discharge -10~50℃
Humidity	4~100%(No condensed water)
Pollution Degree	3
Over Voltage Category	Ⅱ
Cooling Type	Natural cooling
Case Material	Metal+Plastic
IP rating	IP 65
Protective Class	I
Max.Number of Parallel or Series	16
Warranty	10 years
Life Span	>15 years
Communication	CAN/RS485
Protection Mode	Triple hardware protection
Battery Protection	Over-current/Over-voltage/Short circuit/Under-voltage
Hazardous Material Classification	9
