LFP 3000 /HV Stack Mounted Battery Suppliers
Home / Products / Components Products / Battery / Inverter / LFP 3000 /HV Stack Mounted Battery
  • LFP 3000 /HV Stack Mounted Battery
Battery / Inverter

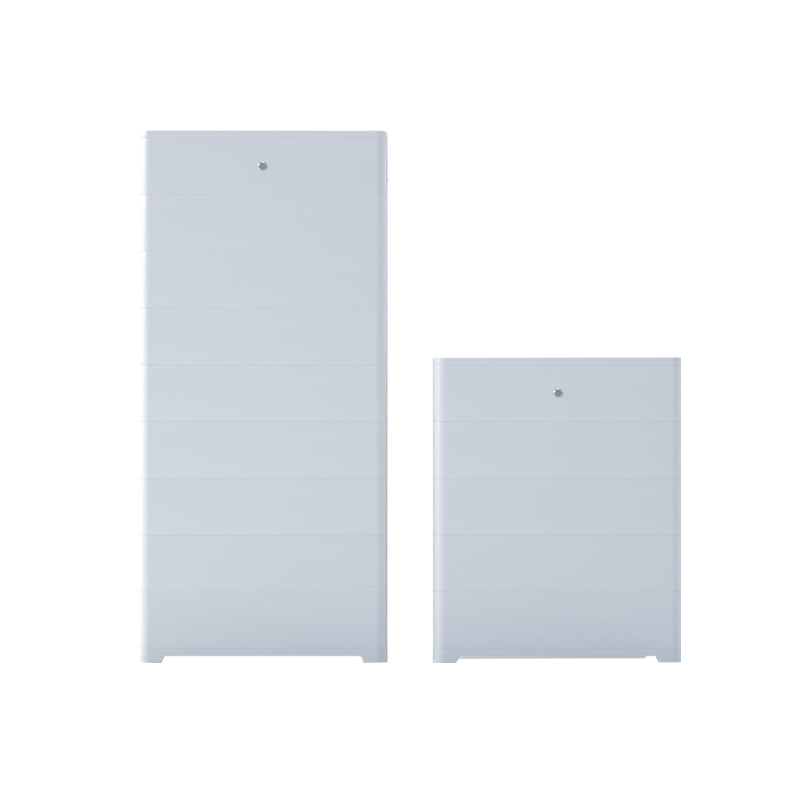

LFP 3000 /HV Stack Mounted Battery

The LFP 3000 / HV Stack Mounted Battery is a high-capacity, modular energy storage solution designed for commercial and industrial applications. Featuring advanced LFP (LiFePO4) technology, it offers superior safety, longevity, and a cycle life of over 6000 cycles. Its stackable design allows for easy scalability, enabling users to customize voltage and capacity to meet large-scale energy demands. With a high-voltage architecture and IP65-rated durability, it ensures efficient performance in demanding environments.

Equipped with a smart BMS system, the battery optimizes charging/discharging processes while providing real-time monitoring and protection against overheating, overcharging, and short circuits. Its wide operating temperature range and natural cooling system make it ideal for diverse climates. Whether used in solar farms, wind energy systems, or industrial backup power, this battery delivers reliable, efficient, and scalable energy storage.

  • LFP 3000 /HV Stack Mounted Battery

Product Description

Model LFP 9kWh LFP 12kWh LFP 15kWh LFP 18kWh LFP 21kWh LFP  24kWh LFP   27kWh LFP   30kWh
Available Energy* 8.64kWh 11.52kWh 14.40kWh 17.28kWh 20.16kWh 23.04kWh 25.92kWh 28.80kWh
Battery Module  LFP 3000/HV:57.6V 50Ah
Number of Modules 10
Nominal Voltage 172.8V 230.4V 288V 345.6V 403.2V 460.6V 518.4V 576V
Operating Voltage Range 135-197.1V 180-262.8V 225-328.5V 270-394.2V 315-459.9V 360-525.6V 405-591.3V 450-657V
Nominal Discharge/Charging Current 50/25A
Max.Charge Voltage 197.1V 262.8V 328.5V 394.2V 459.9V 525.6V 591.3V 657V
Weight 102kg 131kg 160kg 189kg 218kg 247kg 276kg 305kg
Dimension(mm) 670*330*697 670*330*855 670*330*1013 670*330*1171 670*330*1329 670*330*1487 670*330*1645670*330*1803
Certificates CE,UN38.3,IEC62619,IEC63056
Max. recommended  DOD 90%
Operating Condition indoor or outdoor
Operating Charge 0~55℃
Temperature Discharge -20~55℃
Humidity 0~95%(No condensed water)
Pollution Degree
Over Voltage Category
Cooling Type Natural cooling
Case Material Metal+Plastic
IP Rating IP 54
Protective Class I
Warranty 10 years
Life Span >15 years
Communication CAN/WIFI
Protection Mode Triple hardware protection
Battery Protection Over-current/Over-voltage/Short circuit/Under-voltage
Hazardous Material Classification 9
